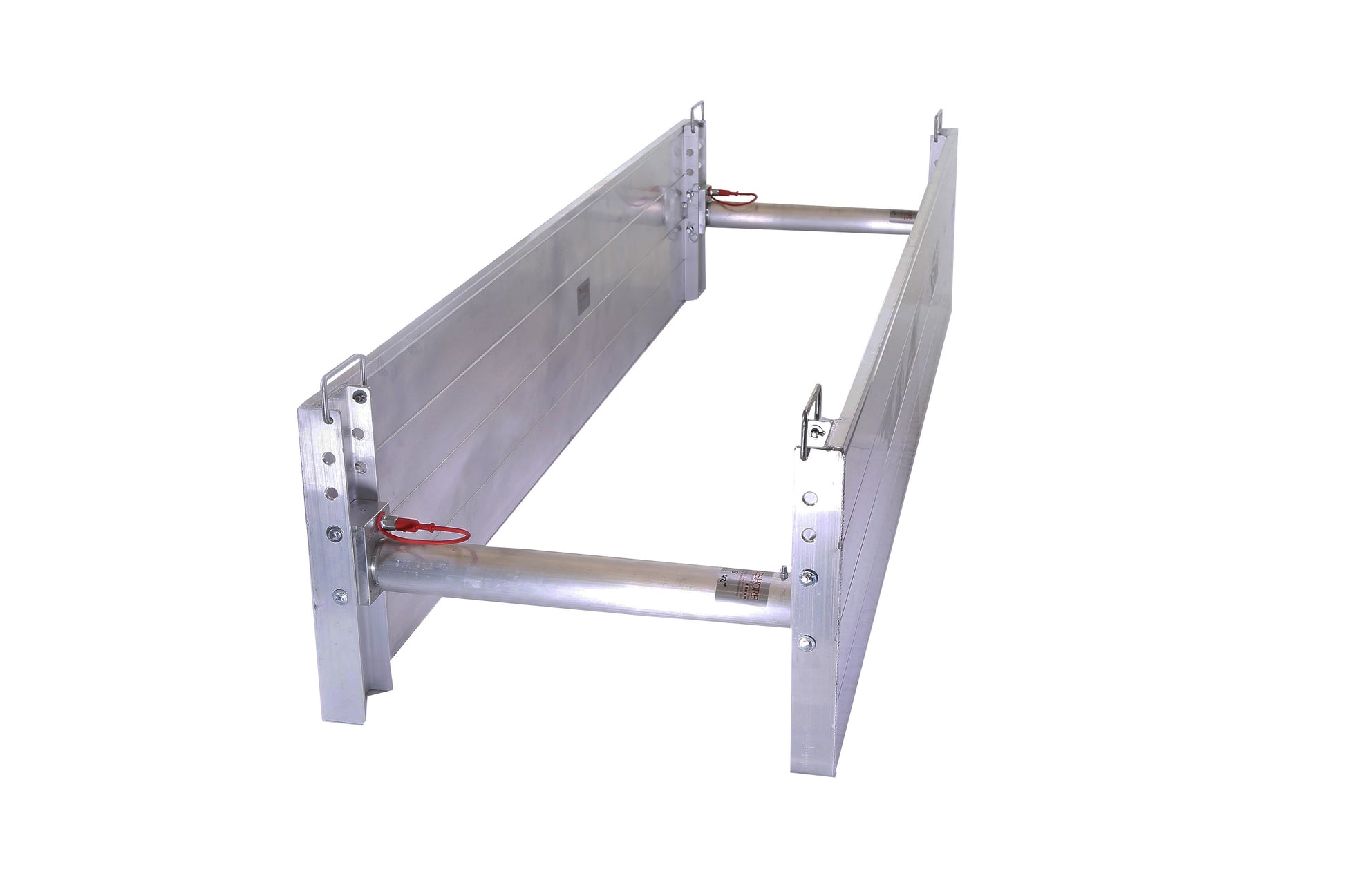

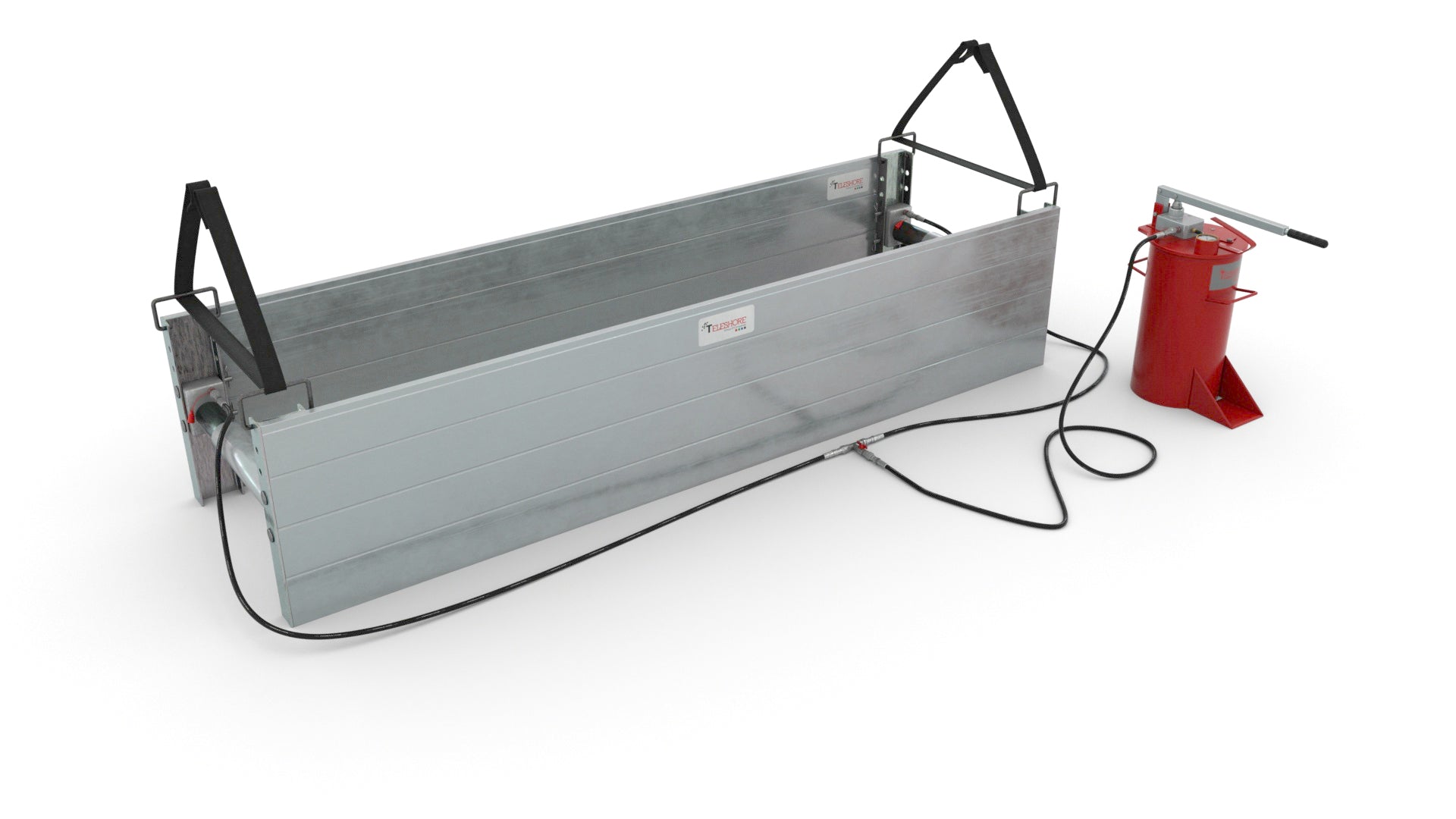

The Teleshore Hydraulic shoring system is the most popular system in use across the UK and North America.
The fully aluminium system is made from robust, high tensile aluminium that has been specifically designed for the grave digging industry.

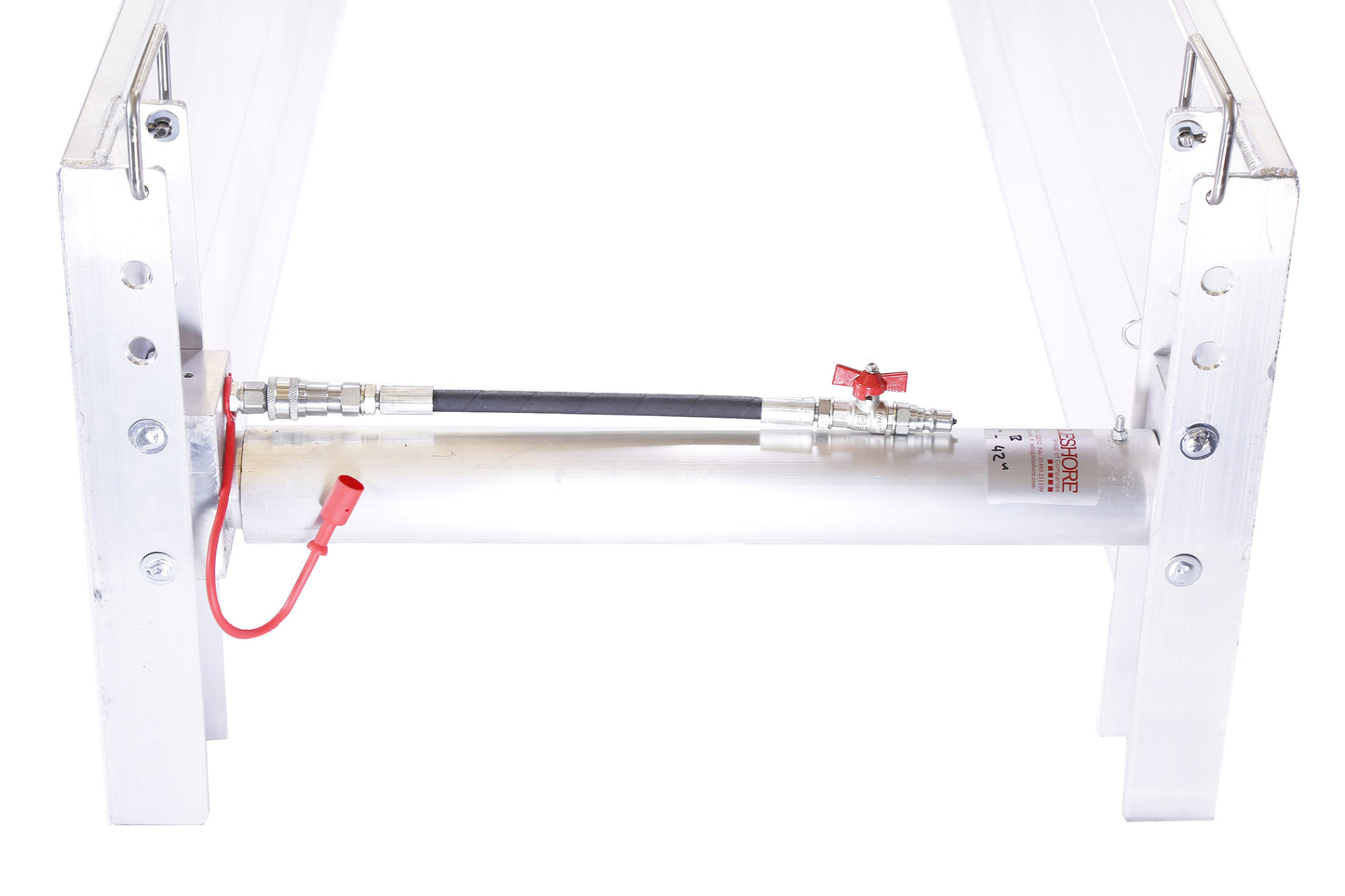

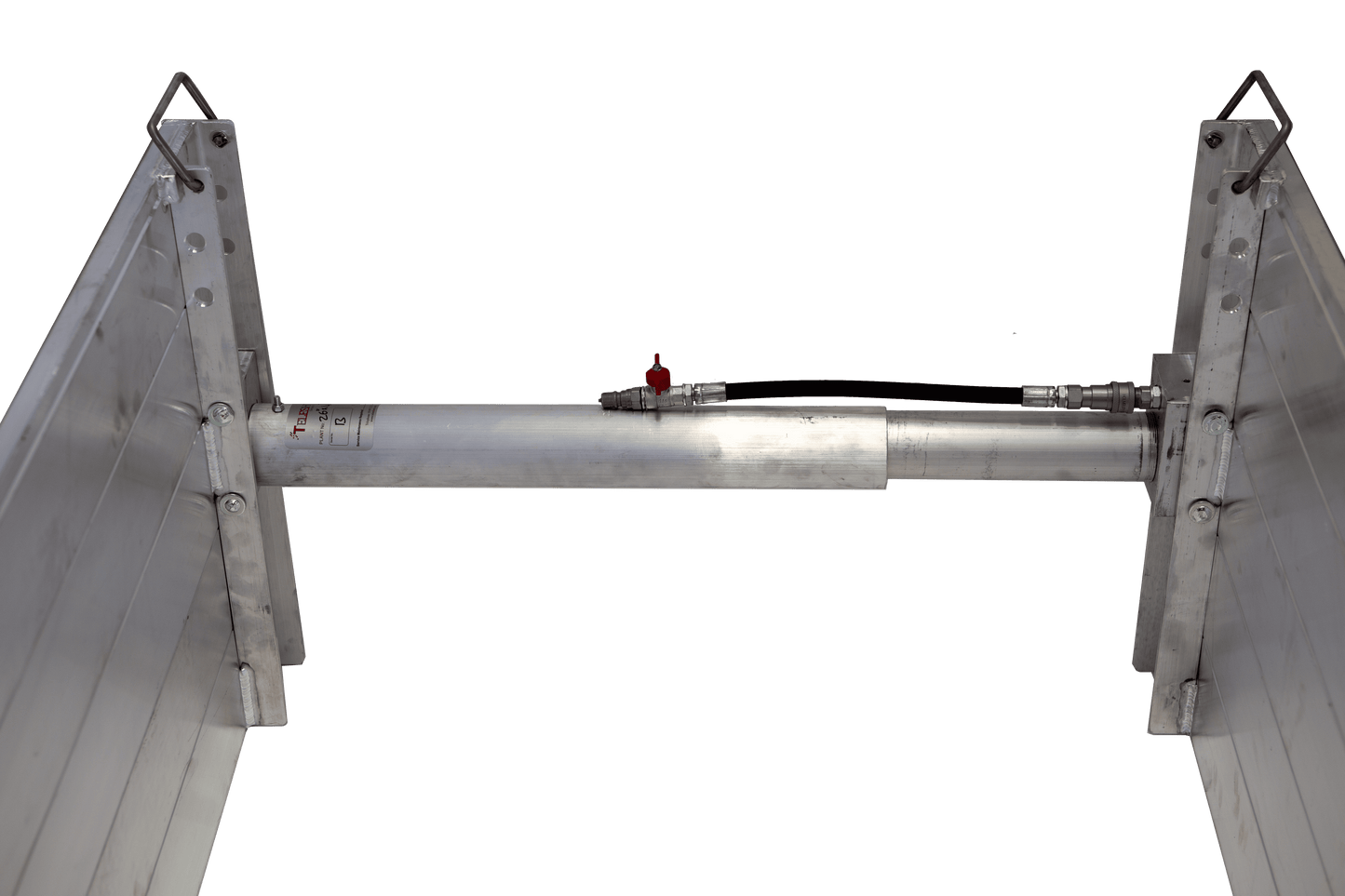

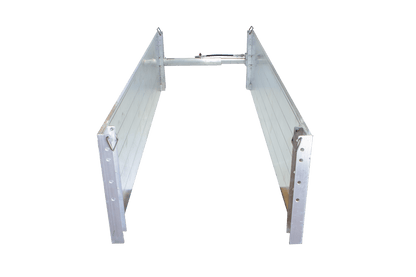

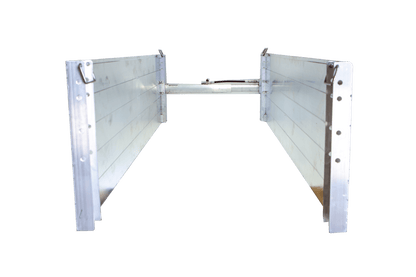

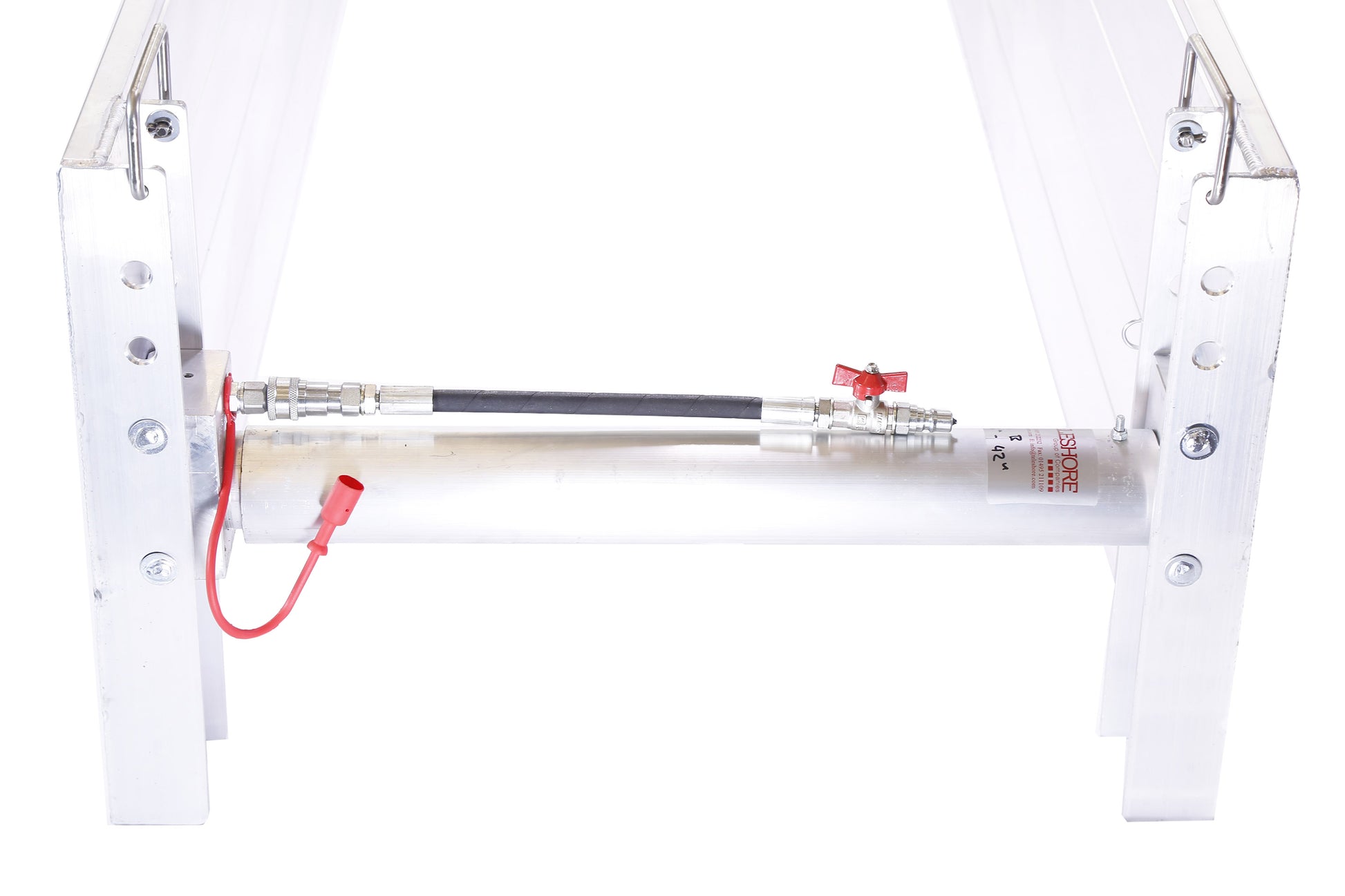

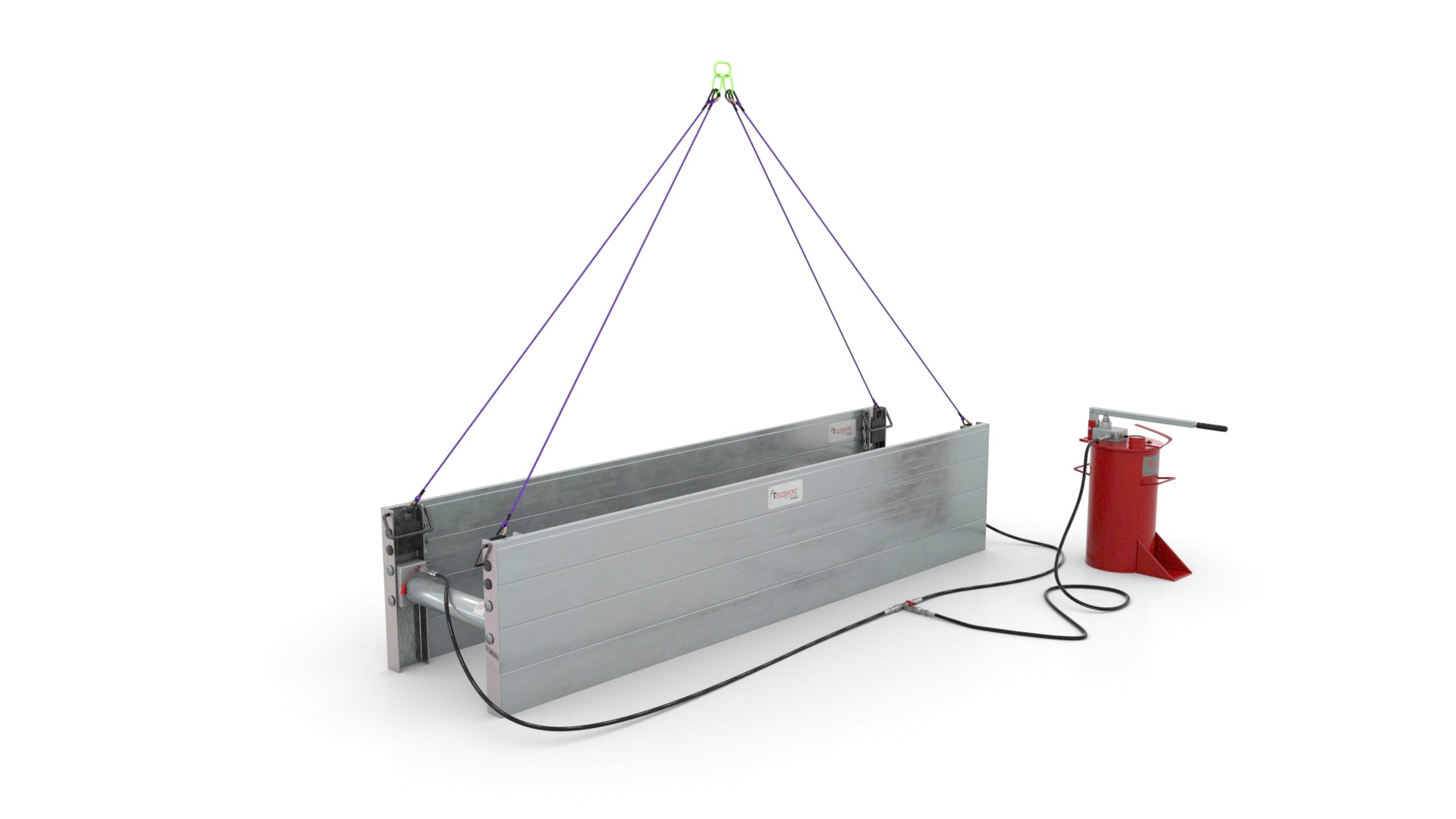

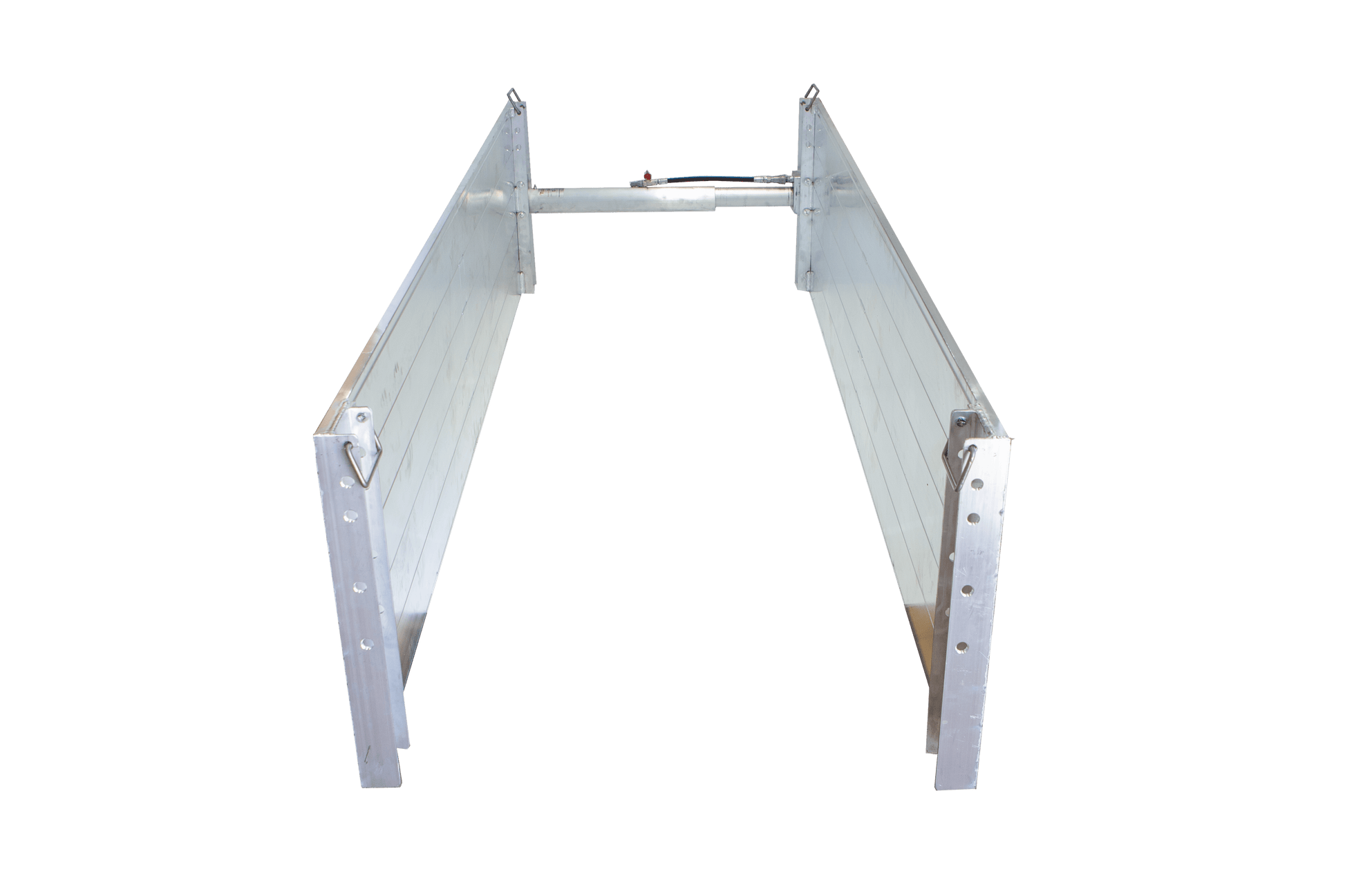

The hydraulic system has the ability to be fully installed from outside of the excavation, reducing the risk to all workers in and around the grave area. The system can be stacked to form a full aluminium wall (Close boarded) or can be split to allow shoring to be installed where necessary. (Open Boarded.)

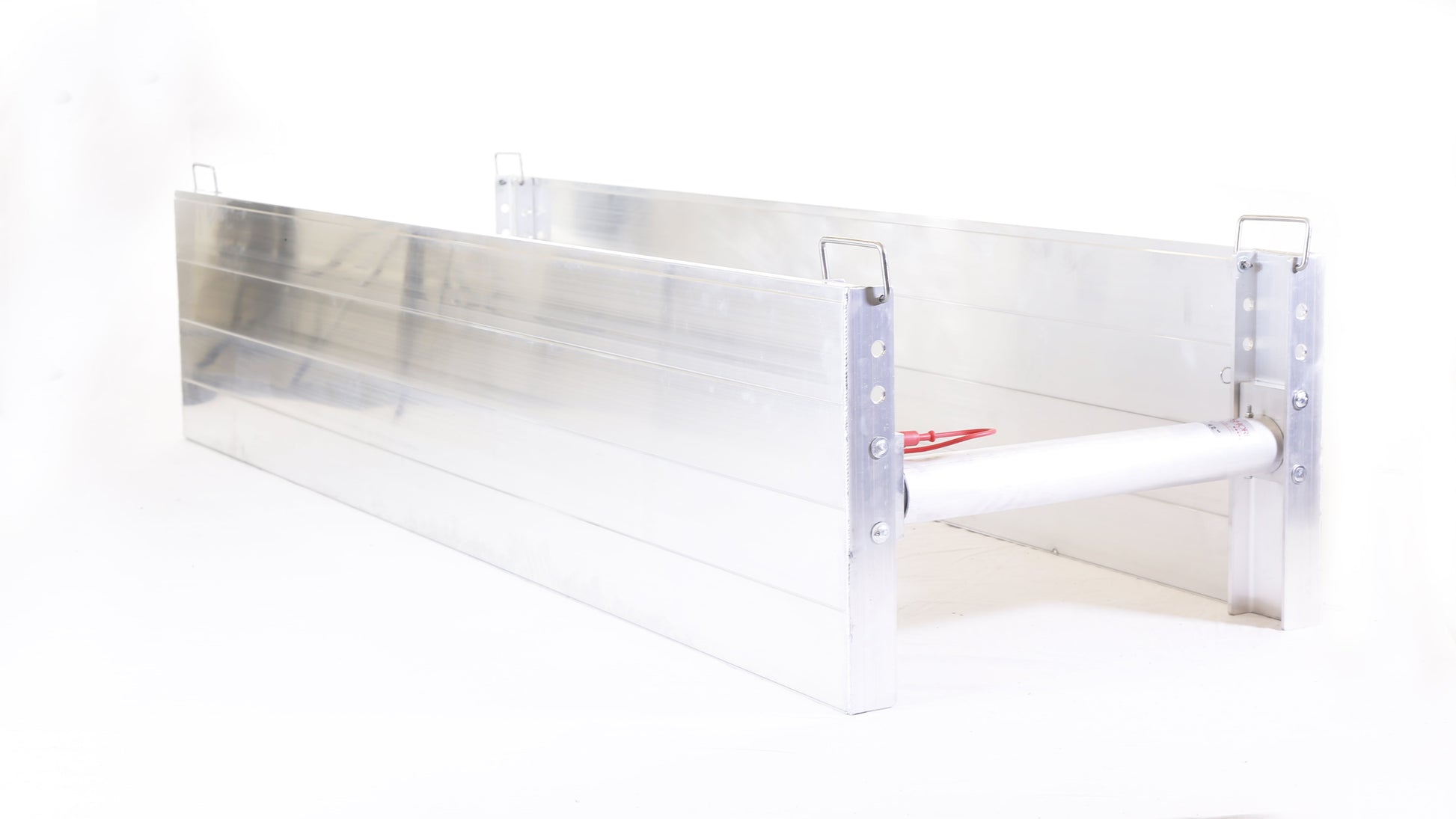

The shoring panels can be manufactured to a length that suits the grave digging operation. Remembering each panel is 1” in width. This ensures the grave wall can be kept as thick as possible and reduces the chances of comprising the grave wall.

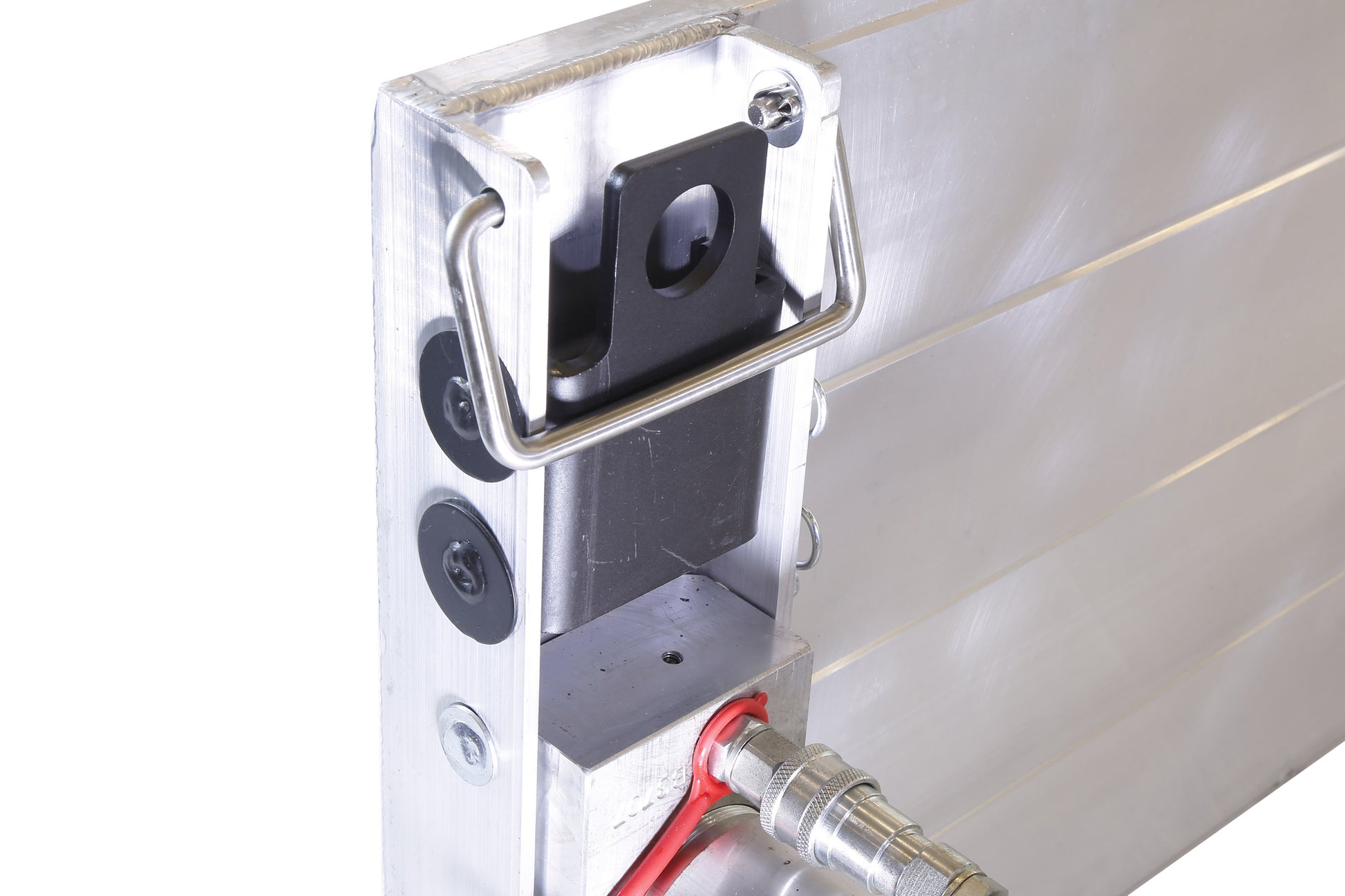

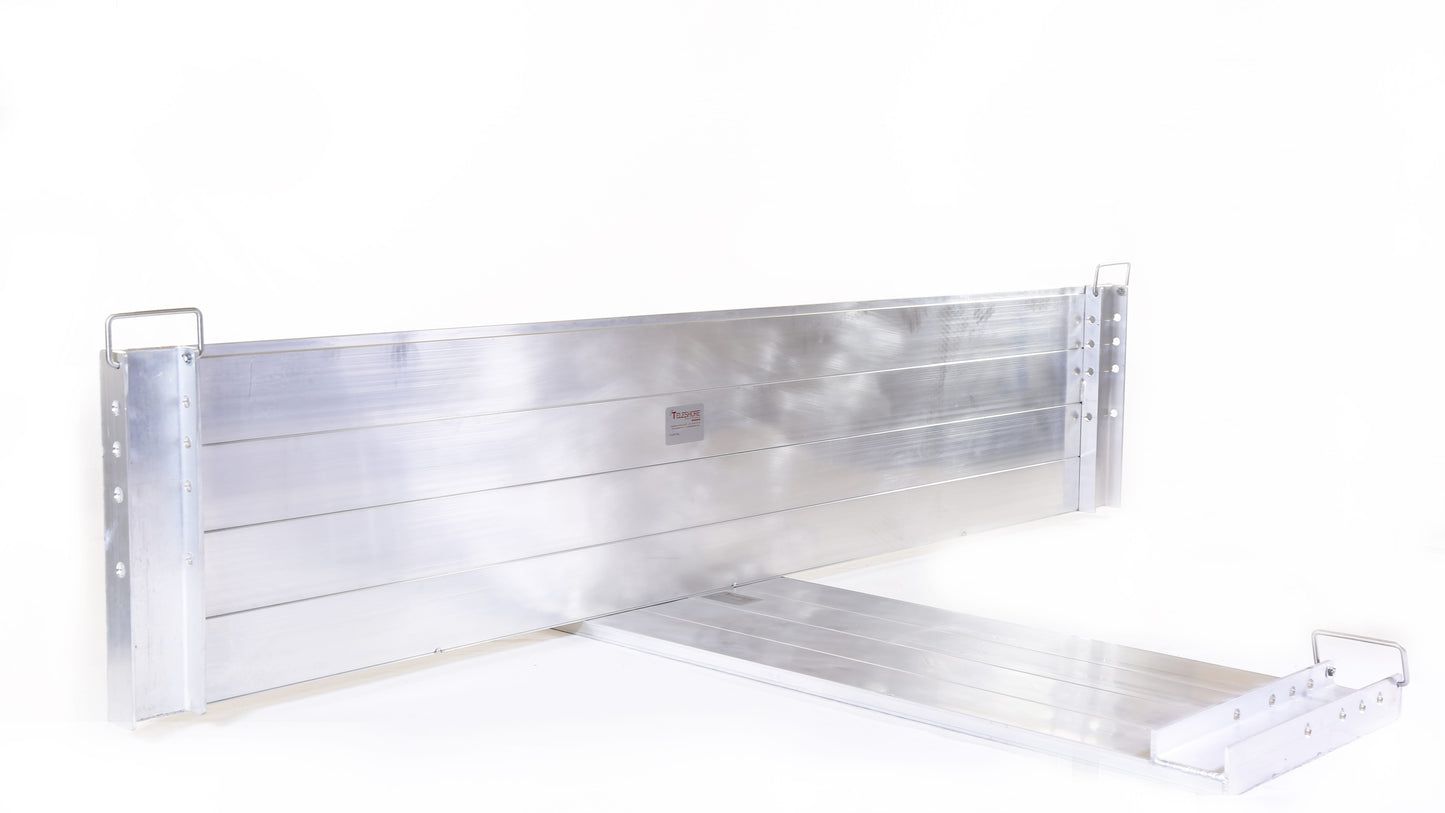

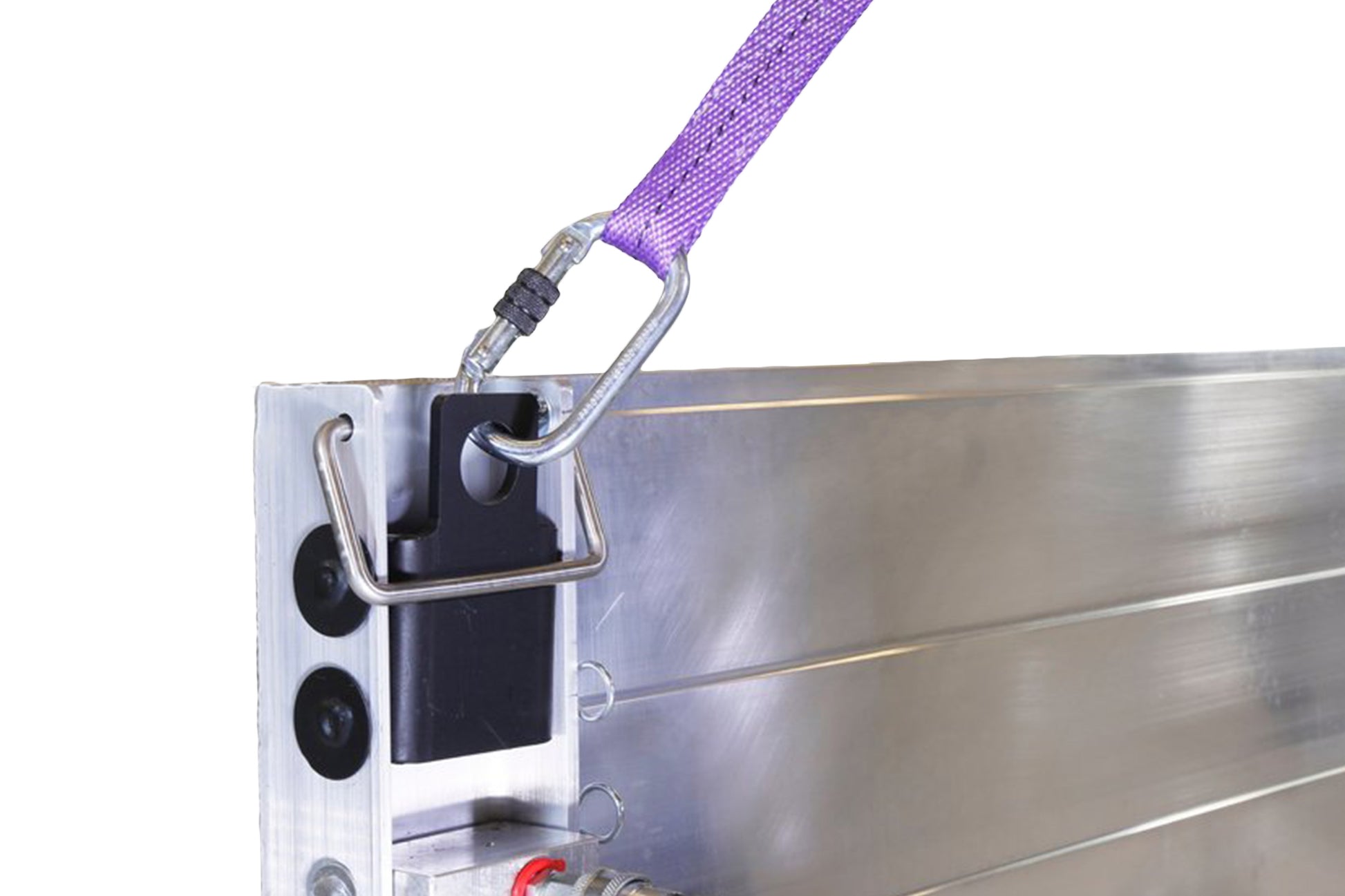

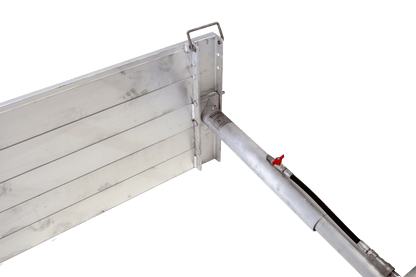

The hydraulic Panels are available in 14”, 18” and 24” Depth. The 18” and 24”panels will be drilled ready to accept lifting eyes without the need for further works.
Panels can also be made Casket, coffin or Taper Shape.

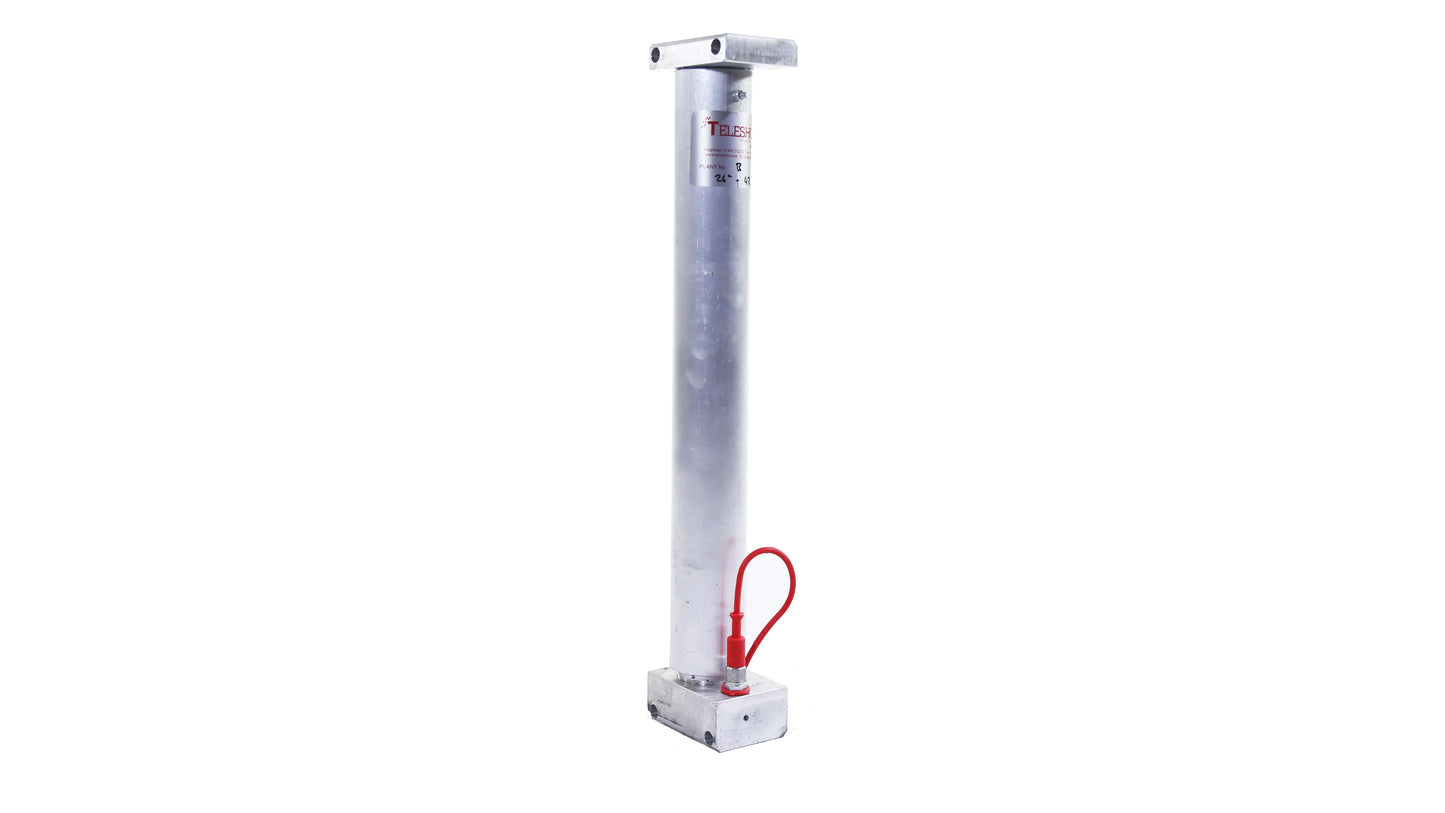

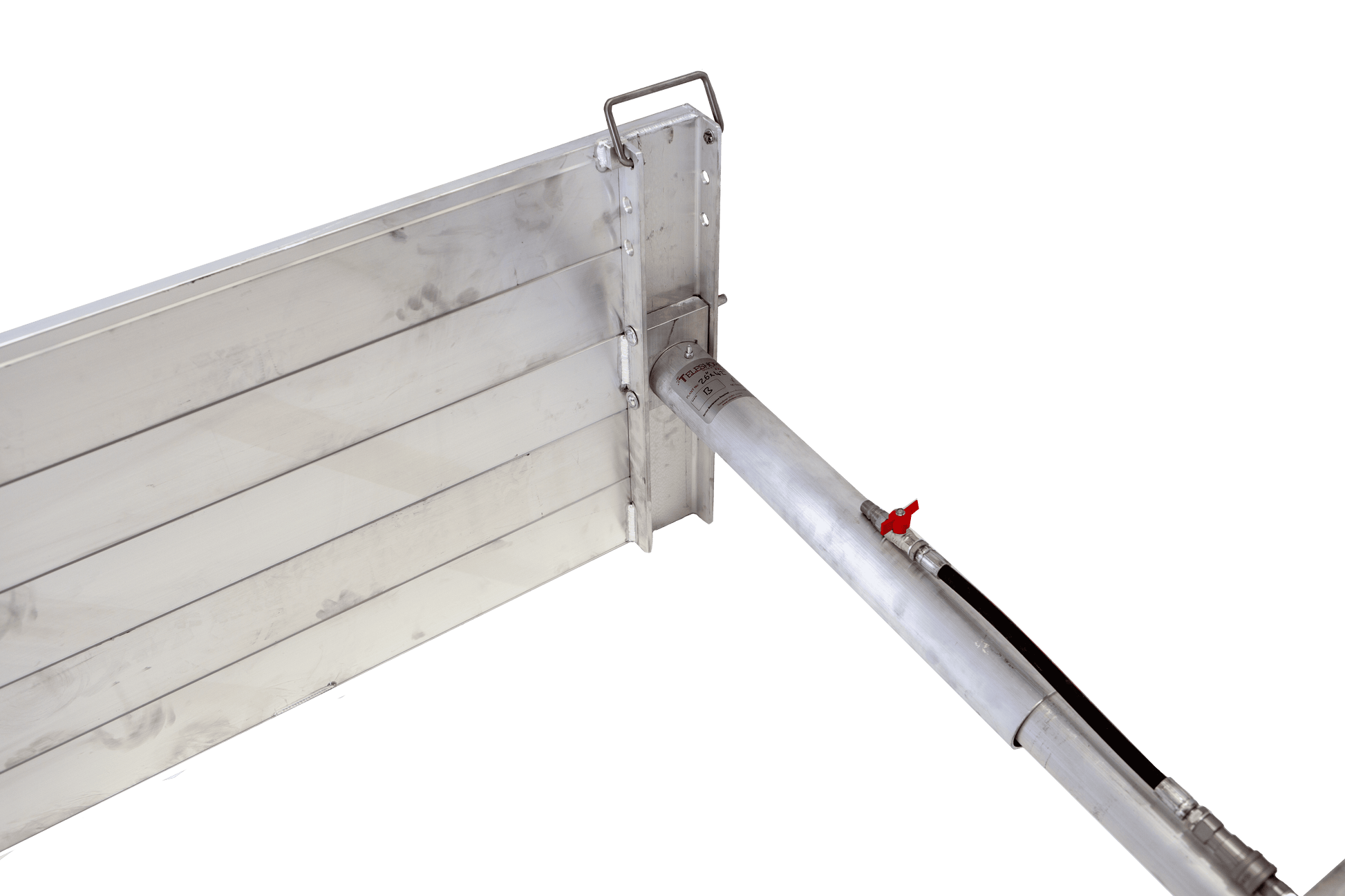

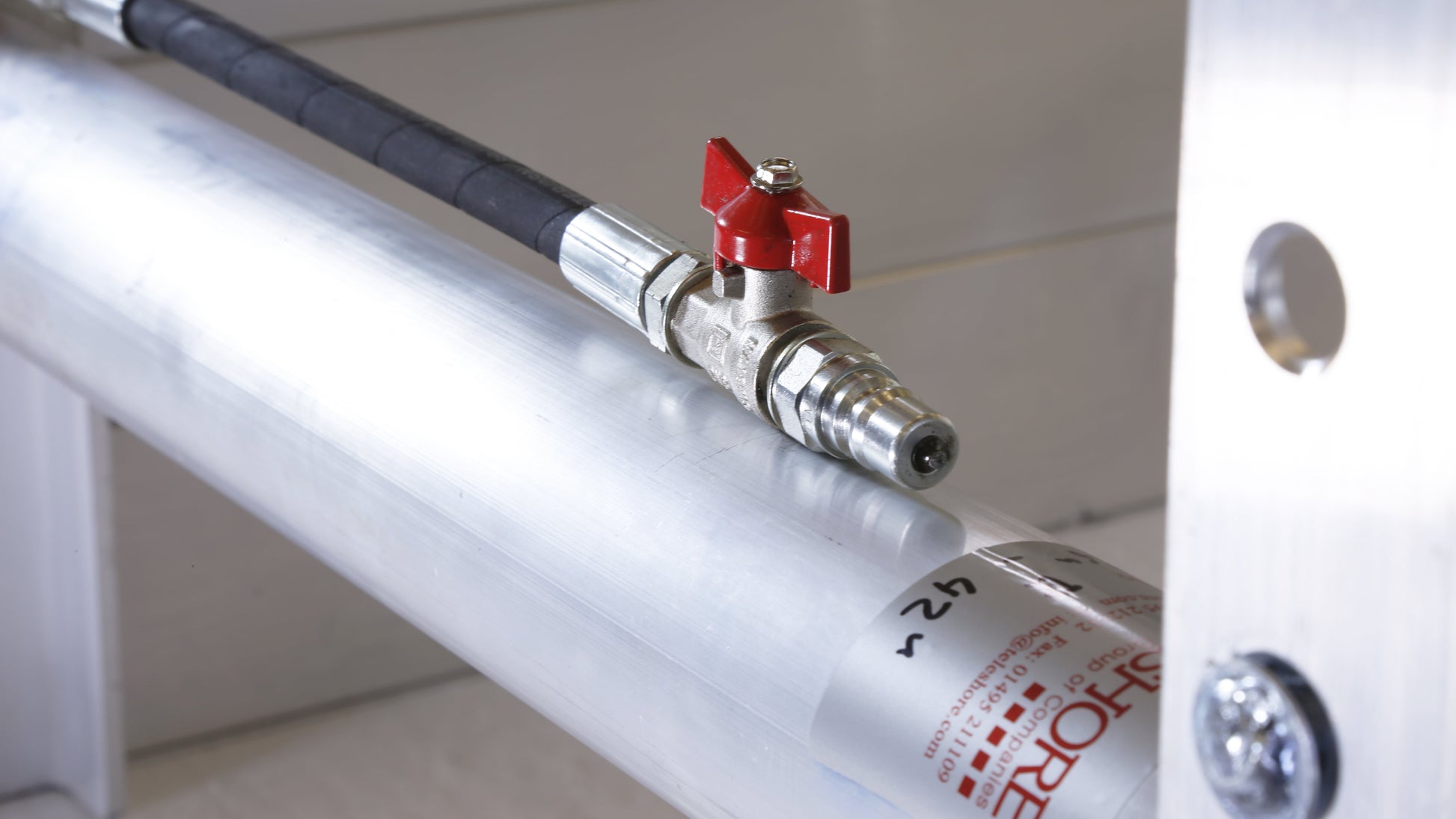

The Teleshore shoring Cylinder range offers cylinders as small as 12” right out to 72” and everything in between. With coffin and casket sizes increases every year for the last decade we have a shoring cylinder that will suit your needs.

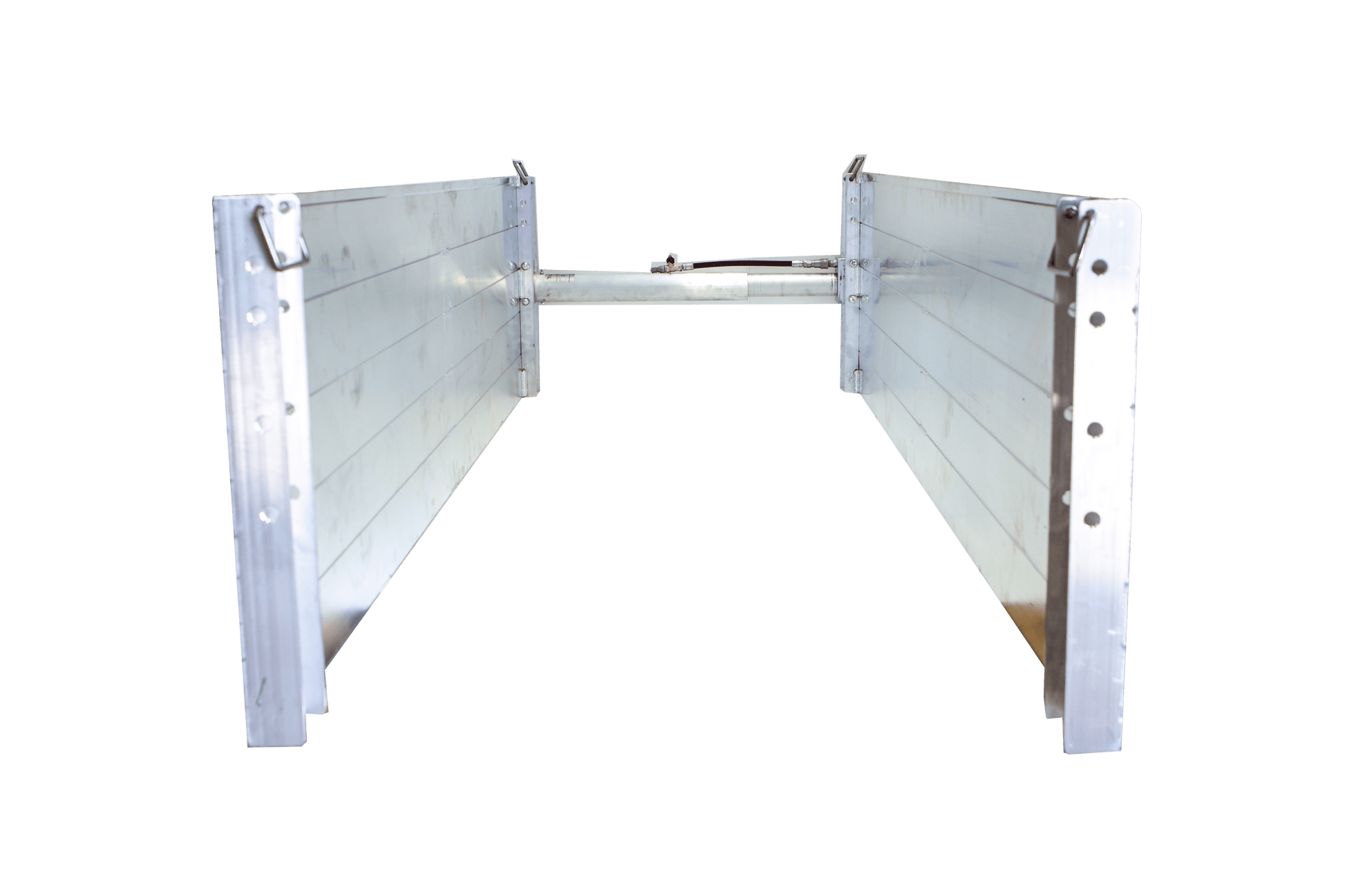

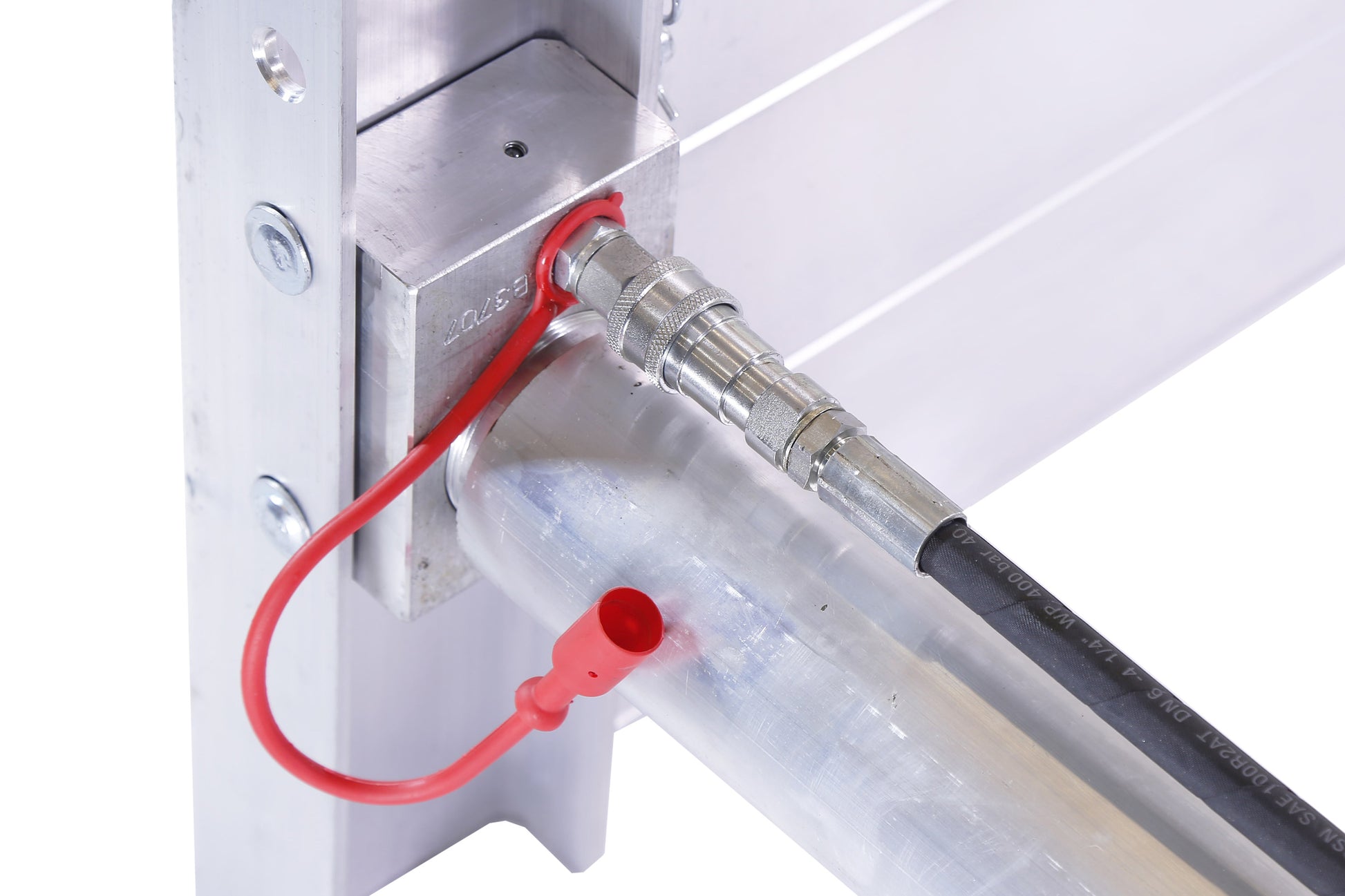

Dependant on the orientation of your panel set up, would depend on the cylinder we would suggest. However the peace of mind is that any Teleshore Panel, will fit any Teleshore cylinder. Utilising a simple smooth pin and clip for assembly ensures the Teleshore system is not only the most versatile, but also the easiest system available for the grave digging application.
Cylinder sizes:
- 12-18
- 18-26
- 21.5- 35.5
- 26-42
- 35-56
- 48-72
