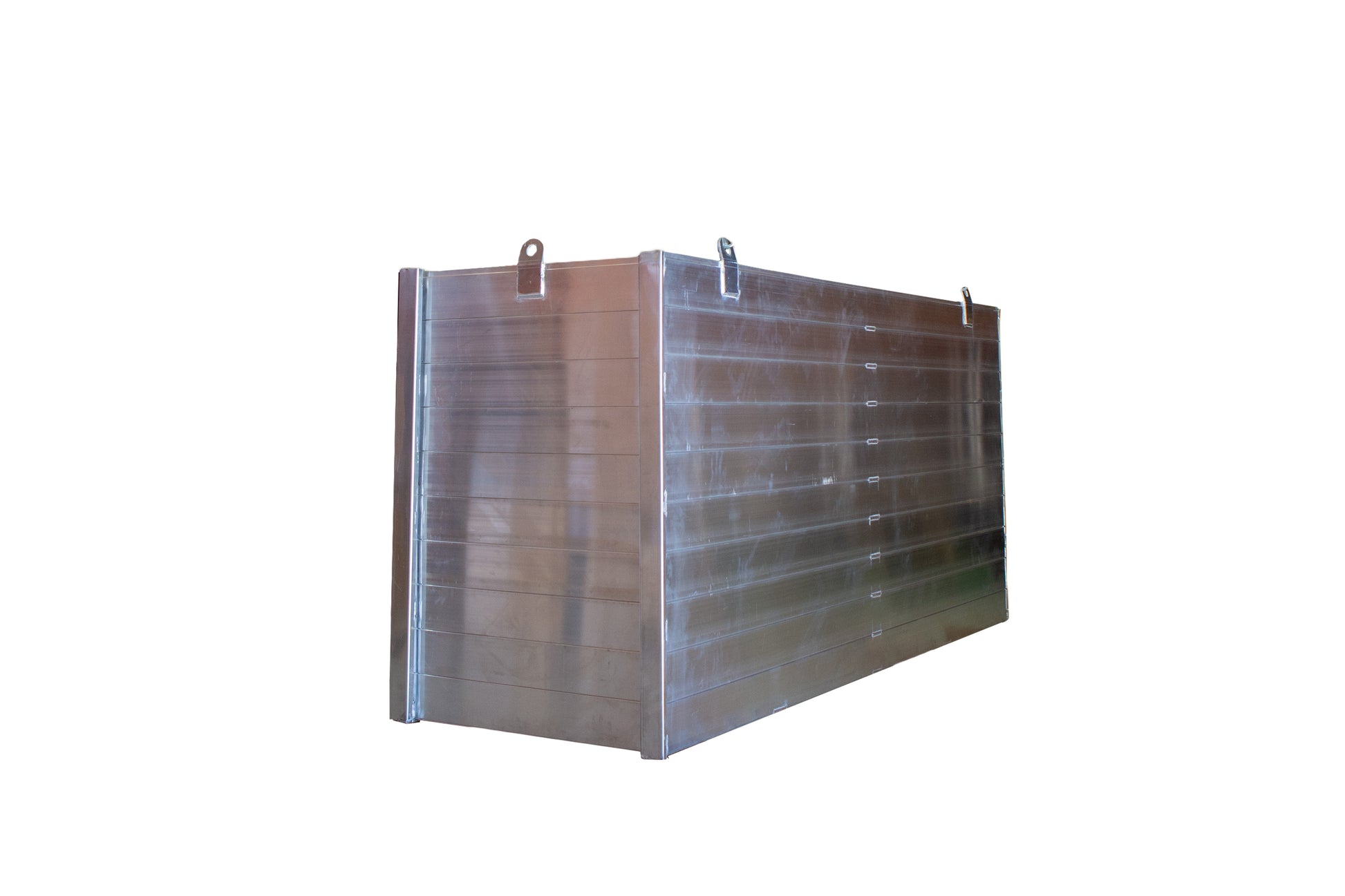

Fixed Box Grave Shoring

The fixed box shoring system allows for full installation from outside the excavation, thereby reducing the risk to all workers in and around the excavation area. The system can be stacked to form a full aluminium wall

Teleshore's Fixed Box Shoring system draws inspiration from traditional trench boxes, ensuring that workers entering the excavation after the shoring has been installed have a safe area of work. This will also ensure that the mourners around the top of the excavation have added protection and reduce the risk of collapse.

The whole fixed box shoring system is customisable both in length of panel and width of opening. The same high tensile aluminium is used across our shoring panel range and ensures that the shoring system works in your environment.

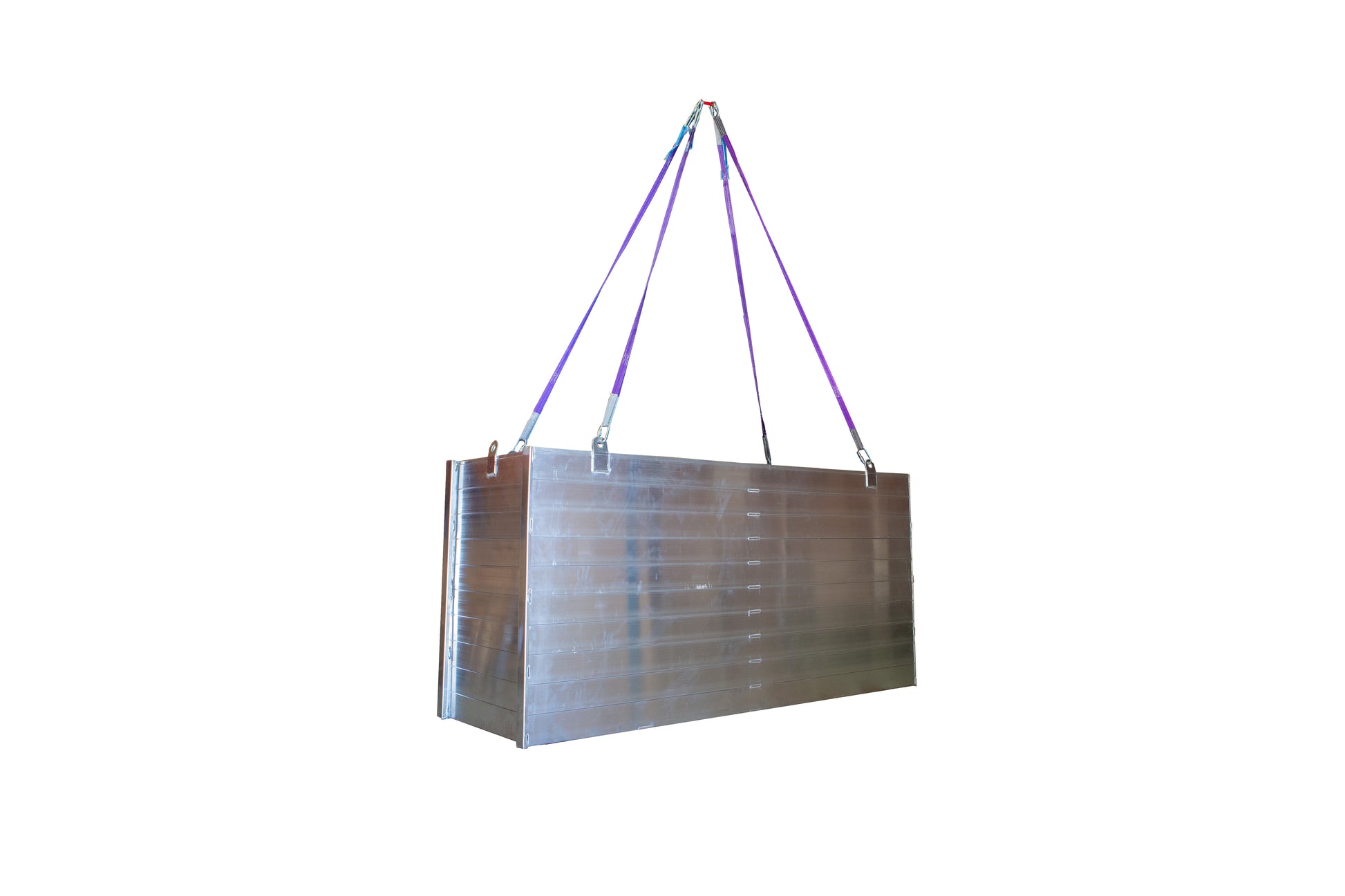

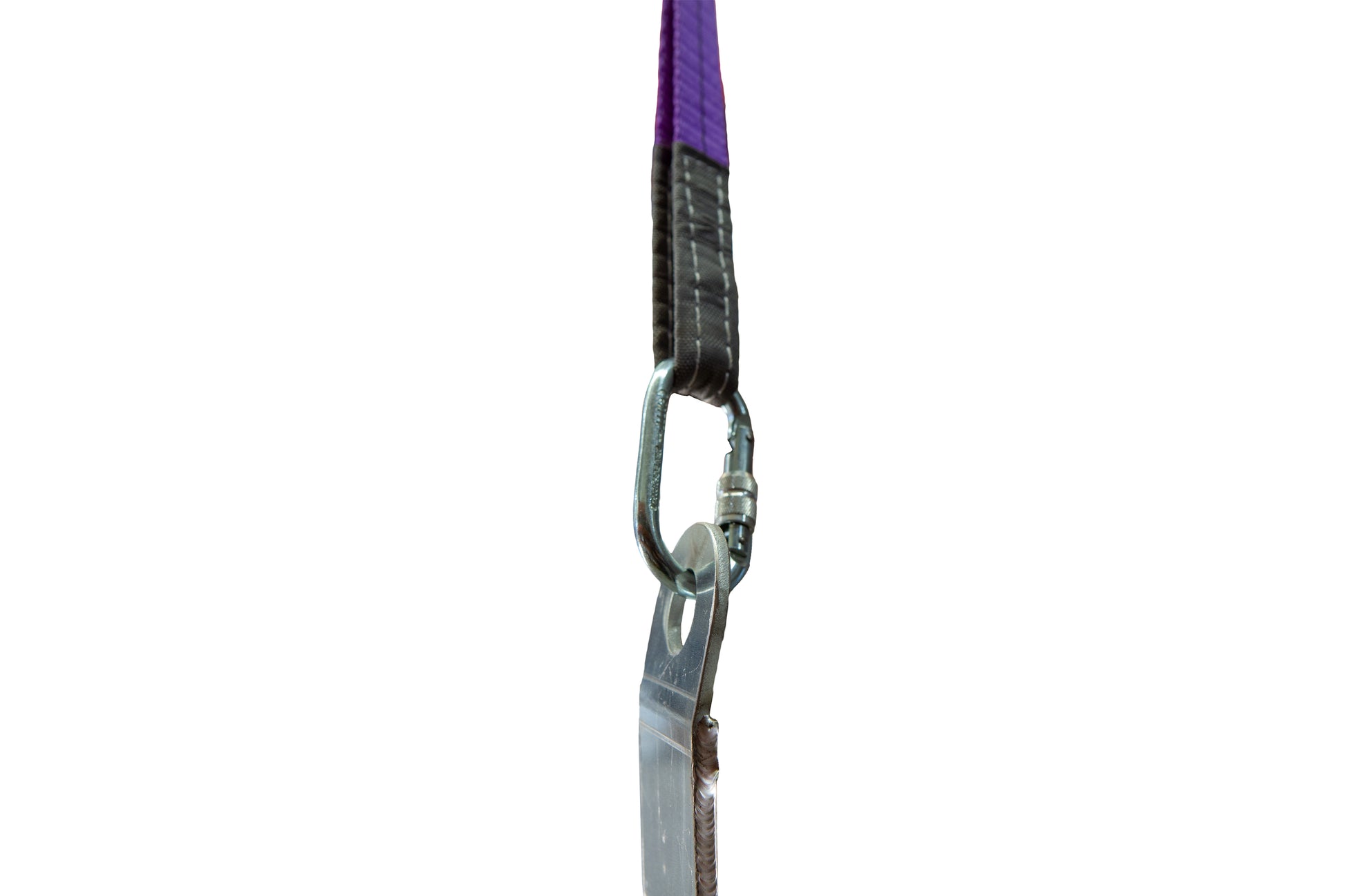

Due to the assembled weight of the shoring system, we advise that it is fitted with the lifting eye brackets, which enable the team to install and retrieve using mechanical equipment.

The fixed shoring box can be beneficial to operators when conditions allow. This system is suitable when a final depth grave dig can be achieved and when there is zero requirement for a person to enter the excavation until the shoring is installed. (Mainly because it can not be installed sectionally).

This system is fully bespoke, however we do have demonstration units that can be tried and demonstrated in your conditions.
